CDC 22T Enviolo E9
Specifications
| Article Group | Rear Sprockets |
|---|---|
| Main-System | CDC |
| Intended use | City |
| System | CDC Center Track |
| Interface | Enviolo E9 - ab MJ 25 |
| Tooth count | 22 |
| Material | cro-mo steel |
| Color | silver |
| Pitch | 11mm |
BL 45,5 mm / 50 mm for Enviolo E9 - from MY 25 (max. 75 Nm)
Product information "CDC CenterTrack Rear Sprocket, Enviolo E9, CrMo steel"

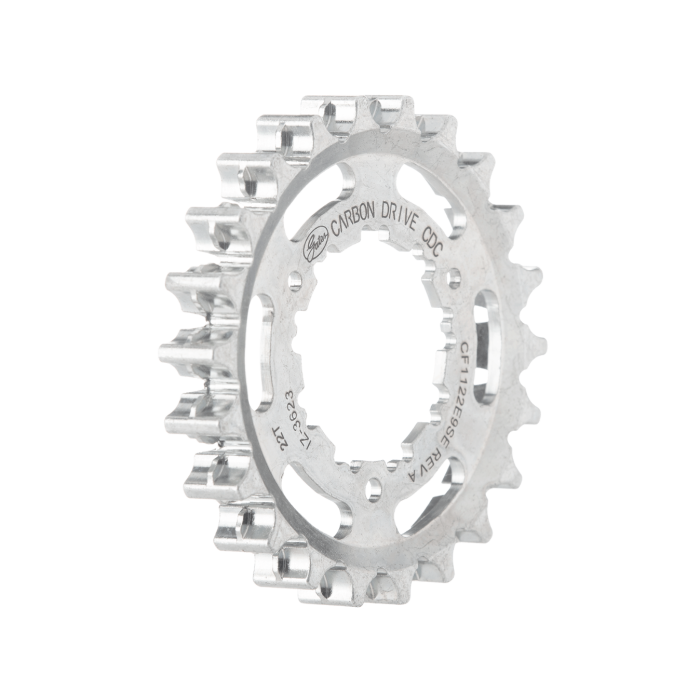

Gates CDC sprocket - Rear - for Enviolo E9
The Gates CDC sprocket is ideal for commuting, university, shopping and all daily errands. The CDC system is particularly robust and durable and is perfect for high-quality city or trekking bikes. It is suitable for all standard e-bikes with mid-motors up to 75 Nm torque. Enviolo renews the design of the freewheel by changing the sprocket attachment from a lock ring to a threaded lock ring. This change improves retention and significantly minimizes sprocket noise under adverse conditions. In addition, the proven tooth profile (Mudsports) offers optimum performance and durability. The patented center track design also ensures that the belt does not run out.
Please note: the sprocket is not compatible with hubs from model year 2023 or earlier!
Technical data
Material: wear-resistant chrome-molybdenum steel
Colour: silver
Centre rail design
Pitch: 11 mm
When correctly mounted, the lettering on the pulley must be legible from the outside.
| Barcode | 4262428334501 |
|---|---|
| Productgroep | Gates |
