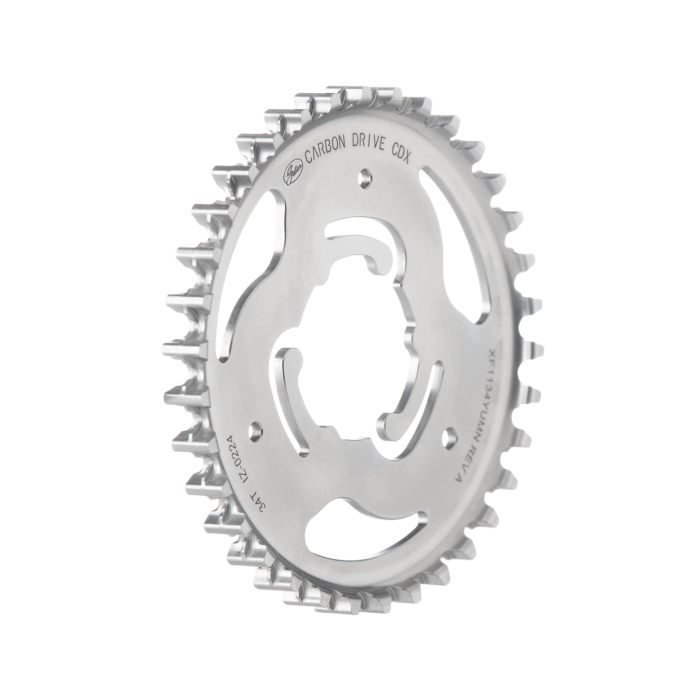

CDX 34T- Shimano Nexus 5 Mech.
€ 141,00
€ 116,53
Nog 4 beschikbaar
SKU
#CDXR34MN5
| Article Group | Rear Sprockets |
|---|---|
| Intended use | City, MTB, Trekking / Gravel |
| System | CDX |
| Interface | Nexus 5 Mech. hub |
| Beltline | 45,5mm |
| Tooth count | 34 |
| Material | stainless Steel |
| Color | silver |
| Pitch | 11mm |
6-Lobe for Unified Beltline 45,5 mm
Product information "CDX Rear Sprocket, 34T, Shimano Nexus 5 Mech. Hub"
- particularly wear-resistant and lightweight stainless steel for aerospace
- innovative tooth profile for optimum performance and durability
- designed for maximum service life
- ideal for everyday use, e-bikes or trekking, optimum operation even under the most stressful conditions
- open tooth profile (Mudports) for trouble-free operation even under adverse conditions such as snow or mud
- accommodation for all common hub gears and Shimano IGH hubs (9 Spline)
- weight-optimised, advanced design
- Center Track design with central guide flange prevents the belt from running off
- 11 mm pitch
- For technical dimensions see PDF.
- Nexus 5 hubs have a larger mounting diameter than Nexus 7 and Nexus 8 hubs. Nexus 5 sprockets and are therefore not compatible with these.
- When correctly mounted, the marking on the sprocket must be legible from the outside.
- Please note Gates mounting instructions
| Barcode | 4262428334426 |
|---|---|
| Productgroep | Gates |
